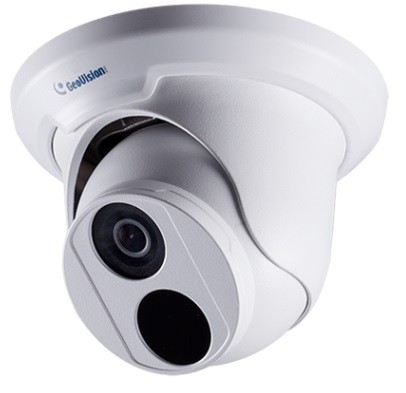

GV-EBD2702 2MP H.265 Low Lux WDR IR Eyeball IP Dome
- 1/3" progressive scan low lux CMOS sensor
- Min. illumination at 0.02 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
- Day and night function (with removable IR-cut filter)
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Wide Dynamic Range (WDR)
- Ingress protection (IP67)
- DC 12V / PoE (IEEE 802.3af)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- ONVIF (Profile S, T) conformant
Introduction
The H.265 Target Eyeball Dome is a compact outdoor network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards and can withstand a wide temperature range. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths. With Wide Dynamic Range, it can process scenes with contrasting intensity of lights and produce clear image.

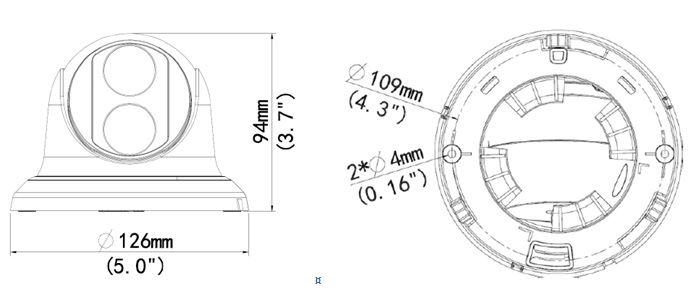

Dimensions
Specifications
|
Camera |
||||
|
Image Sensor |
1/3" progressive scan low lux CMOS |
|||
|
Picture Elements |
2592 (H) x 1520 (V) |
|||
|
Minimum Illumination |
Color |
0.02 Lux (F1.6, AGC ON) |
||
|
IR ON |
0 Lux |
|||
|
Shutter Speed |
Auto / Manual (1/6 ~ 1/100000 sec) |
|||
|
White Balance |
Auto / Manual |
|||
|
Gain Control |
Auto / Manual |
|||
|
S/N Ratio |
52 dB |
|||
|
WDR |
Yes |
|||
|
Dynamic Range |
120 dB |
|||
|
Optical Lens |
||||
|
Megapixel |
Yes |
|||
|
Day / Night |
Yes (with removable IR-cut filter) |
|||
|
Lens Type |
Fixed |
|||
|
Focal Length |
2.8 mm |
|||
|
Maximum Aperture |
F/1.6 |
|||
|
Mount |
M12 |
|||
|
Horizontal FOV |
100° |
|||
|
Operation |
Focus |
Fixed |
||
|
Zoom |
Fixed |
|||
|
Iris |
Fixed |
|||
|
IR LED Quantity |
1 IR LED |
|||
|
Max. IR Distance |
30 m (100 ft) |
|||
|
Operation |
||||
|
Video Compression |
H.265, H.264, MJPEG |
|||
|
Video Streaming |
Triple streams |
|||
|
Frame Rate |
20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520 (60/50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
|||
|
Video Analytics |
Motion Detection, Tampering Alarm, Cross Line, Intrusion, Object Moving, Object Left, Defocus, Scene Change, Face Detection, People Counting *Tampering alarm, cross line, intrusion, object moving, object left, defocus, scene change, face detection and people counting are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP |
|||
|
Image Setting |
Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation |
|||
|
Video Resolution |
||||
|
Main Stream |
2592 x 1520, 2560 x 1440 (Default), 2048 x 1520, 1920 x 1080 |
|||
|
Sub Stream |
1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288 |
|||
|
Third Stream (Closed by Default) |
720 x 576, 704 x 288, 640 x 360, 352 x 288 |
|||
|
Network |
||||
|
Interface |
10/100 Ethernet |
|||
|
Protocol |
802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile S, T) |
|||
|
Mechanical |
||||
|
Camera Angle Adjustment |
Pan |
0° ~ 360° |
||
|
Tilt |
0° ~ 90° |
|||
|
Rotate |
0° ~ 360° |
|||
|
Connectors |
Power |
DC Jack |
||
|
Ethernet |
RJ-45 |
|||
|
General |
||||
|
Environment Temperature |
Start-up |
-35°C ~ 60°C (-31°F ~ 140°F) |
||
|
Operation |
||||
|
Humidity |
0% ~ 95% (no condensation) |
|||
|
Power Source |
12V DC / PoE (IEEE 802.3af) |
|||
|
Max. Power Consumption |
5.5 W |
|||
|
Dimensions |
Ø126 x 94 mm (Ø5.0” x 3.7”) |
|||
|
Weight |
0.33 kg (0.73 lb) |
|||
|
Ingress Protection |
IP67 |
|||
|
Regulatory |
CE, FCC, RoHS, UL compliant |
|||
