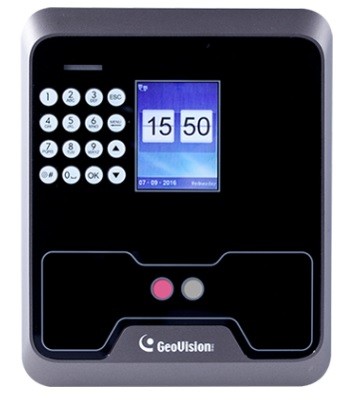

GV-FR2020 Face Recognition Reader
The face recognition reader GV-FR2020 can work with GV-AS Controller and GV-ASManager to create a complete access control system. Two types of operation modes are supported: Face Recognition or Card.
KEY FEATURES
- 2.4” TFT color screen, 320 x 240 pixel display
- Special stereo dual sensors (Lens and IR sensor)
- Up to 80 cm (31. 50 in) detection range
- 2000 face capacity
- ≤ 0.5 second verification speed
- 16-bit Hi-Fi voice and sound indication
- 12V DC, 2 A (only for standalone operation) / PoE+ (IEEE 802.3at)
- Built-in 13.56 MHz Reader
- Work with GV-AS21 / 41 / 81 series Controller and GV-ASManager
- Can work as a standalone reader
- Two (2) access modes for the integration with GeoVision controller and software: Face Recognition mode or Card mode
- Anti-Passback (APB) support
- CE, FCC compliant
SPECIFICATIONS
|
Hardware |
|
|
Application |
Indoor use only |
|
LCD Display |
2.4” TFT color screen, 320 x 240 pixel |
|
CPU |
1G MHz |
|
Ambient Light |
0-5000 lux |
|
Image Sensor |
Special Stereo Dual Sensors (Lens and IR sensor) |
|
Function |
|
|
Detection Range |
Up to 80 cm (31. 50 in) |
|
Communication Interface |
TCP/IP (LAN) |
|
Operation Mode |
Face Recognition, Card or Password (Password is for standalone operation only) |
|
Firmware Upgrade |
USB 2.0 with a maximum capacity of 16 GB |
|
Voice Instruction |
16-bit Hi-Fi Voice and Sound Indication |
|
RFID Card Supported |
13.56 MHz, 26-bit Wiegand card formats (UID only) ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic) |
|
Number of Faces Stored |
2,000 (for Face Recognition mode) |
|
Standalone Function |
Yes (for Face mode, Card mode, Password mode) |
|
General |
|
|
Language |
English |
|
Humidity |
20% ~ 80% |
|
Operating Temperature |
0 ~ 40° C (32 ~ 104° F) |
|
Power |
12V DC, 2 A (only for standalone) / PoE+ (IEEE 802.3at) |
|
PoE Power Supply Type |
Mid-span |
|
Digital I/O |
1 relay output (30V DC, 3A) for standalone operation only |
|
Dimensions (H x W x D) |
147 x 175 x 62 mm (5.79 x 6.89 x 2.44 in) |
|
Weight |
0.33 kg (0.73 lb) |
|
Certification |
CE, FCC |
