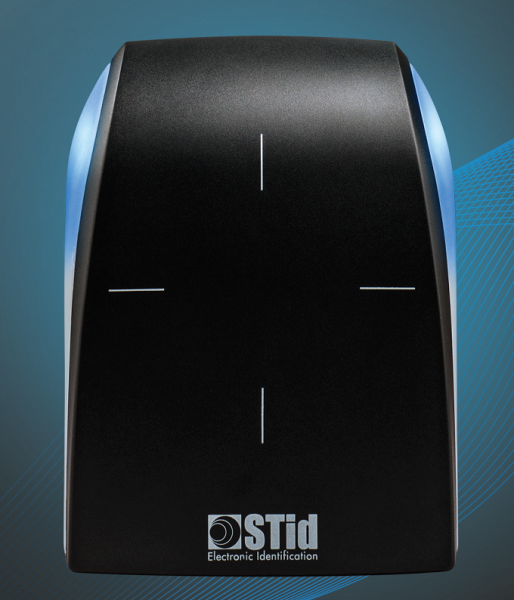

SECURE ACCESS READER
Vandal-proof and extremely scalable, the Architect® badge reader is specially designed for all your high security access control applications.
REATE YOUR OWN SCALABLE CONFIGURATION
STid allows you to upgrade the functionalities and security levels of all your readers. The modularity concept allows you to implement new functions: keyboard, touch screen or biometric fingerprint sensor and/or add a 125 kHz module for your technological migrations.
WELCOME TO HIGH SECURITY
The reader uses the latest MIFARE® DESFire® EV2 contactless chip technologies with new data security mechanisms: • S ecure Messaging EV2: secure transaction method based on AES-128 with protection against interleaving and replay attacks. • P roximity Check: improved protection against relay attacks.
All public encryption algorithms can be used (3DES, AES, RSA, SHA, etc.), which are recommended by official data security agencies (such as the French national agency ANSSI).
BEST MARKET SELF-PROTECTION
The patented tamper protection system protects sensitive data and gives the possibility to delete the sensitive data.
Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.
STANDING THE TEST OF TIME
The reader’s IK10 certified vandal-proof structure has been optimized to resist knocks and malicious acts. It is designed to withstand harsh environments (IP65 level excluding connectivity): dust, heavy rain, frost, etc.
|
Operating frequency/Standards |
13.56 MHz: ISO14443A types A & B, ISO18092 |
|
|
Chip compatibility |
MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, MIFARE® DESFire® 256, EV1 & EV2, CPS3, NFC (HCE), PicoPass® (CSN only), iCLASS™ (CSN only*) |
|
|
Functions |
103: read only CSN serial number (UID) PC1: preconfigured read only PH5: secure read only (sector/file) and secure Protocol (Secure Plus) / Secure read write |
|
|
Communication interfaces & protocols |
TTL Data Clock (ISO2) or Wiegand (ciphered mode - S31) / RS232 / RS485 (ciphered mode - SSCP & SSCP2 ; OSDP™ V1 (plain communication) & V2 (SCP secure communication) |
S33) with secure communication protocols |
|
Decoder compatibility |
Compatible with EasySecure and «transparent» interfaces: EasyRemote, RemoteSecure & RemoteSecure addressable (4 readers) |
|
|
Reading distances** |
Up to 8 cm / 3.15'' with a MIFARE® DESFire® EV2 or Classic card |
|
|
Light indicator |
2 LEDs RGB - 360 colors Configuration by RFID card, UHF technology, software or external command (0V) according to the interface |
|
|
Audio indicator |
Internal buzzer Configuration by RFID card, UHF technology, software or external command (0V) according to the interface |
|
|
Power requirement / Power supply |
130 mA/12 VDC max / 7 to 28 VDC |
|
|
Connections |
10-pin plug-in connector (5 mm / 0.2”) / 2-pin plug-in connector (5 mm / 0.2"): O/C contact |
- Tamper detection signal |
|
Material |
ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white) |
|
|
Dimensions (h x w x d) |
106.6 x 80 x 25.7 mm / 4.21'' x 3.15" x 1.02'' (general tolerance following ISO NFT 58-000 standard) |
|
|
Operating temperatures |
- 30°C to + 70°C / - 22°F to + 158°F / Humidity: 0 - 95% |
|
|
Tamper switch |
Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller |
|
|
Protection / Resistance |
IP65 Level excluding connector - Weather-resistant with waterproof electronics compliant with CEI NF EN 61086 standard Reinforced vandal-proof structure IK10 certified |
|
|
Mounting |
Compatible with any surfaces and metal walls - Wall mount/Flush mount:
|
|
|
Certifications |
CE, FCC & UL |
|
