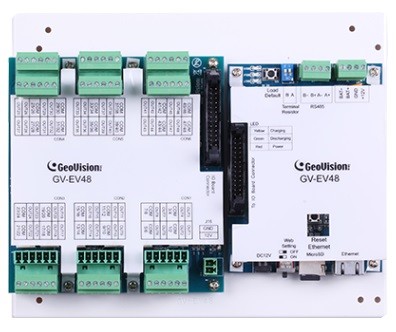

GV-EV48 Elevator IP Control Panel
Introduction
GV-EV48 is an elevator controller designed to control access of 1 elevator with a maximum of 48 floors. Up to 2 GV-Readers / GV-GF Fingerprint Readers can be connected to GV-EV48 using RS-485 connection and network connection. GV-EV48 can recognize identification cards and grant access to the authorized floors only.
Key Features
- Grant access to specific elevator floors using access cards, card's PIN code or fingerprint
- GV-EV48 – 24 Floors: Built-in 24 relay outputs to support up to 24 elevator floors
- GV-EV48 – 48 Floors: Built-in 48 relay outputs to support up to 48 elevator floors
- Support up to 2 GV-Readers / GV-GF Fingerprint Readers through network connection and RS-485 connection
- Support up to 48 I/O ports of any GV-I/O Box 4/8/16 Ports
Specifications
|
System Requirements |
||
|
GV-ASManager Version |
GV-ASManager V4.1 or later |
|
|
Hardware |
||
|
CPU |
32-bit ARM7TDMI |
|
|
Number of User Cards |
40,000 cards |
|
|
Event Buffer |
1,000,000 events and log data |
|
|
Power |
AC 100~250 V , 50~60Hz |
|
|
RS-485 Interface |
1 RS-485 interface only for GV-Readers / GV-GF Fingerprint Readers (max. 2 readers) and GV-IO Box 4/8/16 Ports (max. 48 I/O ports) |
|
|
TCP/IP Interface |
1 TCP/IP interface for GeoVision network readers |
|
|
Communication |
TCP/IP |
|
|
Battery |
Built-in battery |
|
|
Output |
GV-EV48-24 Floors |
24 relay outputs (30VDC, 1A; 125V AC, 0.3A) |
|
GV-EV48-48 Floors |
48 relay outputs (30VDC, 1A; 125V AC, 0.3A) |
|
|
Operating Temperature |
0~65°C / 32 ~ 149°F |
|
|
Operating Humidity |
10% ~ 90% RH (non-condensing) |
|
|
Dimensions (W x H x D) |
210 x 170 x 55 mm (8.27 x 6.69 x 2.17 in) |
|
|
Weight |
610 g (1.34 Ib) |
|
|
Certification |
CE, FCC, RoHS |
|
