GV-VD5711 5MP H.265 2x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome
- 1/3” progressive scan super low lux CMOS
- Triple streams from H.265, H.264 and MJPEG
- Up to 30 fps at 2592 x 1944
- Vandal resistance (IK10+)
- Ingress protection (IP67)
- Motorized varifocal lens for remote focus/zoom adjustment
- P-Iris for auto Iris adjustment
- 3-axis mechanism (pan / tilt / roll)
- Removable IR-cut filter for Day/Night function
- High power IR LEDs
- Intelligent IR
- IR distance up to 30 m (100 ft)
- External microphone
- Two-way audio
- One sensor input and alarm output
- TV-out support
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
- DC12V / AC24V / PoE+ (IEEE 802.3at)
- Wide Dynamic Range Pro (WDR Pro)
- 3D noise reduction
- Smart streaming
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- Text overlay
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Introduction
GV-VD5711 is an outdoor camera designed with IK10+ vandal resistance and IP67 ingress protection. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The night vision is enhanced with its high-power LEDs with up to 30 m (100 ft) effective distance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-VD4711 is capable of not only providing a color live view in near darkness but also under contrasting light intensities using its super low lux CMOS image sensor and WDR Pro.

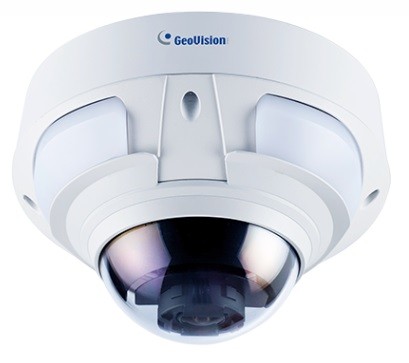

Overview

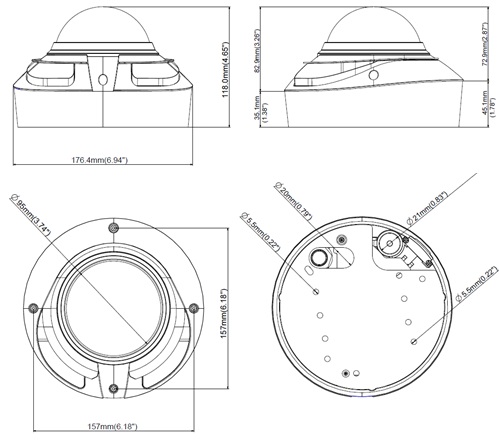

Dimensions
Specifications
|
Camera |
|||
|
Image Sensor |
1/1,8” progressive scan super low lux CMOS |
||
|
Picture Elements |
2592 (H) x 1520 (V) |
||
|
Minimum Illumination |
Color |
0.04 Lux |
|
|
B/W |
0.03 Lux |
||
|
IR ON |
0 Lux |
||
|
Shutter Speed |
Automatic, Manual (1/5 ~ 1/8000 sec) |
||
|
White Balance |
Automatic, Manual (2800K ~ 8500K) |
||
|
Gain Control |
Automatic |
||
|
S/N Ratio |
46 dB |
||
|
WDR |
WDR Pro |
||
|
Dynamic Range |
72 dB |
||
|
Lens |
|||
|
Megapixel |
4 MP |
||
|
Day / Night |
Yes (with removable IR-cut filter) |
||
|
Lens Type |
Motorized Varifocal lens |
||
|
Focal Length |
4 ~ 8 mm |
||
|
Maximum Aperture |
F/1.7 |
||
|
Mount |
Ø 14 mm |
||
|
Image Format |
1/1,8’’ |
||
|
Horizontal FOV |
90° ~ 48° |
||
|
Operation |
Focus |
Auto focus |
|
|
Zoom |
2x optical zoom |
||
|
Iris |
P-Iris |
||
|
High Power IR LED Quantity |
6 IR LEDs |
||
|
Max. IR Distance |
30 m (100 ft) |
||
|
Operation |
|||
|
Video Compression |
H.265, H.264, MJPEG |
||
|
Video Stream |
Stream 1 |
H.265 or H.264 |
|
|
Stream 2 |
H.265, H.264, or MJPEG |
||
|
Stream 3 |
H.265, H.264, or MJPEG |
||
|
Frame Rate |
50Hz: 25 fps at 2592 x 1944, 25 fps at 2592 x 1520 60Hz: 30 fps at 2592 x 1944, 30 fps at 2592 x 1520 * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
||
|
Image Setting |
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Backlight Compensation, D/N Sensitivity, Shutter Speed, WDR, Defog, Zoom, Focus Change, Denoise, Metering |
||
|
Audio Compression |
G.711, AAC (Optional) |
||
|
Audio Support |
Two‐way Audio (external microphone and speaker required) |
||
|
Sensor Input |
1 Input (dry contact) |
||
|
Alarm Output |
1 Output (200 mA 5V DC) |
||
|
Video Resolution |
|||
|
Main Stream |
4:3 |
2592 x 1944 (Default), 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480 |
|
|
16:9 |
2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x360 |
||
|
5:4 |
1280 x 1024, 640 x 512 |
||
|
Sub Stream |
4:3 |
1024 x 768, 640 x 480 (Default), 320 x 240 |
|
|
16:9 |
1280 x 720, 640 x 360, 448 x 256 |
||
|
5:4 |
1280 x 1024, 640 x 512, 320 x 256 |
||
|
Third Stream (Closed by Default) |
4:3 |
640 x 480, 320 x 240 |
|
|
16:9 |
640 x 360, 448 x 256 |
||
|
5:4 |
640 x 512, 320 x 256 |
||
|
Network |
||
|
Interface |
10/100 Ethernet |
|
|
Ethernet Protocol |
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA |
|
|
Security Feature |
- No default ID and Password - 802.1x authentication - HTTPS with a SSL certificate stored in the camera - 256-bit AES encryption (requires firmware V1.14 or later working with GV-VMS V18.1 or later) |
|
|
Mechanical |
||
|
Temperature Detector |
Yes |
|
|
Camera Angle Adjustment |
Pan |
-90° ~ 90° |
|
Tilt |
0° ~ 85° |
|
|
Rotate |
0° ~ 350° |
|
|

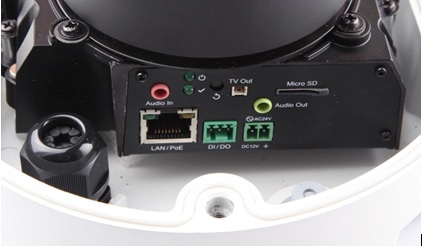

Connectors |
Power |
2-pin terminal block (DC 12V, 3.5A), PoE |
|
Ethernet |
Ethernet (10/100 Base-T), RJ-45 cable |
|
|
Audio |
1 In (3.5mm phone jack for microphone) |
|
|
Digital I/O |
3-pin terminal block, pitch 2.5 mm (0.1”) |
|
|
Local Storage |
Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) *UHS‐II card type is not supported. |
|
|
TV-Out |
BNC connector (D1 resolution) |
|
|
LED Indicator |
2 LEDs: Power, Status |
|
|
General |
||
|
Environment Temperature |
Start‐up |
-20°C ~ 50°C (-4°F ~ 122°F) |
|
Operation |
||
|
Humidity |
10% to 90% (no condensation) |
|
|
Power Source |
12V DC / 24V AC / PoE+ (IEEE 802.3at) |
|
|
Max. Power Consumption |
25.5 W |
|
|
Dimensions |
Camera Body |
Ø 176.5 x 118 mm (Ø 6.9’’ x 4.6’’) |
|
Weight |
1.83 kg (4.03 lb) |
|
|
Ingress Protection |
IP67 |
|
|
Vandal Resistance |
IK10+ |
|
|
Regulatory |
CE, FCC, RCM, RoHS compliant |
|
|
Power over Ethernet |
||
|
PoE Standard |
PoE+ (IEEE 802.3at Power over Ethernet / PD) |
|
|
PoE Power Supply Type |
End-Span and Mid-Span |
|
|
PoE Power Output |
Per Port 48V DC, 600 mA, Max. 30 watts |
|
|
Web Interface |
||
|
Installation Management |
Web-based configuration |
|
|
Maintenance |
Firmware upgrade through Web Browser or Utility |
|
|
Access from Web Browser |
Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual automation, Text overlay |
|
|
Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
|
