GV-EDR4700 Series 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
- 1/3” progressive scan super low lux CMOS
- Triple streams from H.265, H.264 and MJPEG
- Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
- Day and Night function (with removable IR-cut filter)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- 2-axis mechanism (pan / tilt)
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Intelligent IR
- 3D noise reduction
- Smart streaming
- Defog
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- IP address filtering
- Recording assigned by GV-Edge Recording Manager (Windows & Mac)
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Introduction
The Target Mini Fixed Rugged Dome is an outdoor, fixed, mini-sized network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera adheres to IK10 and IP67 standards. It is adjustable in 2 axes (pan and tilt) and can be connected through PoE. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-EDR4700 is capable of not only providing a color live view in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

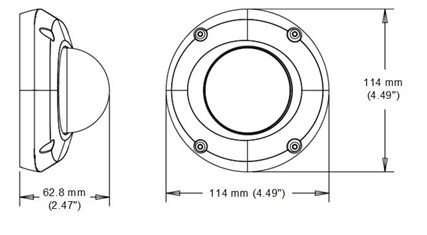

Dimensions
Specifications
|
Camera |
GV-EDR4700-0F |
GV-EDR4700-2F |
|
|
Image Sensor |
1/3" progressive scan super low lux CMOS |
||
|
Picture Elements |
2592 (H) x 1520 (V) |
||
|
Minimum Illumination |
Color |
0.03 Lux |
|
|
B/W |
0.02 Lux |
||
|
IR ON |
0 Lux |
||
|
Shutter Speed |
Automatic, Manual (1/5 ~ 1/16000 sec.) |
||
|
White Balance |
Automatic, Manual (2800K ~ 8500K) |
||
|
Gain Control |
Automatic |
||
|
S/N Ratio |
50 dB |
||
|
WDR |
WDR Pro |
||
|
Dynamic Range |
Up to 120 dB |
||
|
Lens |
|||
|
Megapixel |
Yes |
||
|
Day/Night |
Yes (with removable IR-cut filter) |
||
|
Focal Length |
2.8 mm |
3.8 mm |
|
|
Lens Type |
Fixed |
||
|
Maximum Aperture |
F/2.0 |
F/1.8 |
|
|
Mount |
M12, Pitch 0.5 mm |
||
|
Horizontal FOV |
96° |
72° |
|
|
Image Format |
1/2.7" |
||
|
Operation |
Focus |
Fixed |
|
|
Zoom |
Fixed |
||
|
Iris |
Fixed |
||
|
IR LED Quantity |
12 IR LEDs |
||
|
Max. IR Distance |
15 m (50 ft) |
||
|
Operation |
|||
|
Video Compression |
H.265, H.264, MJPEG |
||
|
Video Streaming |
Stream 1 from H.265 or H.264 Stream 2 from H.265, H.264 or MJPEG Stream 3 from H.265, H.264 or MJPEG |
||
|
Frame Rate |
50Hz: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520 60Hz: 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520 |
||
|
Image Setting |
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low Lux Enhancement, Denoise, Metering |
||
|
Audio Compression |
AAC (Optional) |
||
|
Audio Support |
N/A |
||
|
Video Resolution |
|||
|
Main Stream |
4:3 |
2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480 |
|
|
16:9 |
2592 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360 |
||
|
5:4 |
1280 x 1024, 640 x 512 |
||
|
Sub Stream |
4:3 |
1024 x 768, 640 x 480, 320 x 240 |
|
|
16:9 |
1280 x 720, 640 x 360 (Default), 448 x 256 |
||
|
5:4 |
1280 x 1024, 640 x 512, 320 x 256 |
||
|
Third Stream (Closed by Default) |
4:3 |
640 x 480, 320 x 240 |
|
|
16:9 |
640 x 360, 448 x 256 |
||
|
5:4 |
640 x 512, 320 x 256 |
||
|
Network |
|||
|
Interface |
10/100 Ethernet |
||
|
Ethernet Protocol |
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA |
||
|
Security Feature |
- No default ID and Password - 802.1x authentication - HTTPS with a SSL certificate stored in the camera - 256-bit AES encryption (requires firmware V1.14 or later working with GV-VMS V18.1 or later) |
||
|
Mechanical |
|||
|
Temperature Detector |
Yes |
||
|
Camera Angle Adjustment |
Pan |
-45° ~ 45° |
|
|
Tilt |
0° ~ 63° |
||
|
Connectors |
Power |
2-pin terminal block (DC 12V, 1.25A), PoE |
|
|
Ethernet |
Ethernet (10/100 Base-T), RJ-45 cable |
||
|
LED Indicator |
4 LEDs: Link, ACT, Power, Status |
||
|
General |
|||
|
Environment Temperature |
Start‐up |
‐20°C ~ 50°C (‐4°F ~ 122°F) |
|
|
Operation |
‐30°C ~ 50°C (‐22°F ~ 122°F) |
||
|
Humidity |
10% to 90% (no condensation) |
||
|
Power Source |
12V DC / PoE (IEEE 802.3af) |
||
|
Max. Power Consumption |
6.07 W |
||
|
Dimension |
ø 114 x 62.8 mm (4.49’’ x 2.47”) |
||
|
Weight |
600 g (1.32 lb) |
||
|
Ingress Protection |
IP67 |
||
|
Vandal Resistance |
IK10 for metal casing |
||
|
Regulatory |
CE, FCC, RCM, LVD, RoHS compliant |
||
|
Power over Ethernet |
|||
|
PoE Standard |
PoE (IEEE 802.3af Power over Ethernet / PD) |
||
|
PoE Power Supply Type |
End-span and Mid-Span |
||
|
PoE Power Output |
Per Port 48V DC, 350 mA, Max. 15.4 watts |
||
|
Web Interface |
|||
|
Installation Management |
Web-based configuration |
||
|
Maintenance |
Firmware upgrade through Web Browser or Utility |
||
|
Access from Web Browser |
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Picture in Picture, Privacy Mask, Text Overlay, Digital PTZ |
||
|
Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
||
|
Applications |
|||
|
Software Supported |
GV-DVR / NVR (V8.7.1.0), GV-VMS (V15.11.3.0), GV-Control Center (V3.4.0.0), GV-Edge Recording Manager (V1.2.0.0), GV-Center V2 (V15.10.0.0), GV-Recording Server / Video Gateway (V1.3.0.0), GV-Redundant / Failover Server (V1.1.0.0) |
||
|
Smart Device Access |
GV-Eye for iOS and Android |
||
|
Live Viewing |
Browser (IE, Chrome, Firefox, Safari), Mobile App |
||
|
CMS Server support |
GV-Control Center, GV-Center V2, GV-Vital Sign Monitor |
||
