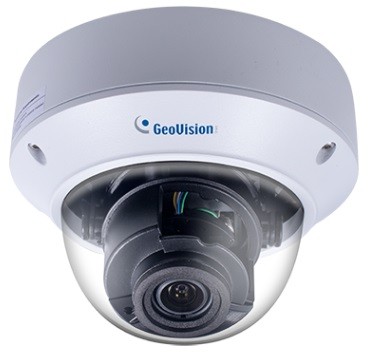

GV-AVD8710 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome
- 1/2” progressive scan super low lux CMOS
- Min. illumination at 0.003 lux
- Triple streams from H.265, H.264 and MJPEG
- Up to 20 fps at 3840 x 2160,
- 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
- Motorized varifocal lens for remote focus / zoom adjustment
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- 3-axis mechanism (pan / tilt / rotate)
- DC 12V / PoE (IEEE 802.3af)
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage
- Two-way audio
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- 3D noise reduction
- Motion detection
- Tampering Alarm
- Text overlay
- Privacy mask
- ONVIF (Profile G, S, T) conformant
Introduction
The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-AVD8710 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

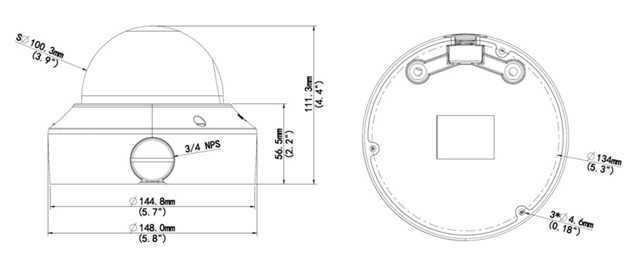

Dimensions
Specifications
|
Camera |
|
||
|
Image Sensor |
1/2” progressive scan super low lux CMOS |
||
|
Picture Elements |
3840 (H) x 2160 (V) |
||
|
Minimum Illumination |
Color |
0.003 Lux (F1.5, AGC ON) |
|
|
IR On |
0 Lux |
||
|
Shutter Speed |
Auto, Manual (1/6 ~ 1/100000 sec) |
||
|
White Balance |
Auto, Manual |
||
|
Gain Control |
Auto, Manual |
||
|
S/N Ratio |
52 dB |
||
|
WDR Pro |
Yes |
||
|
Dynamic Range |
Up to 120 dB |
||
|
Lens |
|||
|
Megapixel |
8 MP |
||
|
Day/Night |
Yes (with removable IR-cut filter) |
||
|
Focal Length |
2.8 ~ 12 mm |
||
|
Lens Type |
Motorized varifocal lens |
||
|
Maximum Aperture |
F/1.5 |
||
|
Mount |
Ø14 mm |
||
|
Horizontal FOV |
114.8°~47.3° |
||
|
Operation |
Focus |
Auto / Manual |
|
|
Zoom |
4.3x Optical Zoom |
||
|
Iris |
Fixed |
||
|
IR LED Quantity |
2 IR LEDs |
||
|
Max. IR Distance |
30 m (100 ft) |
||
|
Operation |
|||
|
Video Compression |
H.265, H.264, MJPEG |
||
|
Video Streaming |
Triple streams |
||
|
Frame Rate |
20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440 (60 / 50 Hz) * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). |
||
|
Video Analytics |
Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion, Object Moving, Object Left, Defocus, Scene Change, Face Detection, People Counting *Tampering alarm, audio detection, cross line, intrusion, object moving, object left, defocus, scene change, face detection and people counting are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP |
||
|
Image Setting |
Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation |
||
|
Audio Compression |
G.711, AAC (optional) |
||
|
Audio Support |
Two‐way Audio (external microphone and speaker required) |
||
|
Digital I/O |
Input |
1 Input, dry contact, NO / NC |
|
|
Output |
1 Relay Output (1A 30V DC / 0.3A 125V AC) |
||
