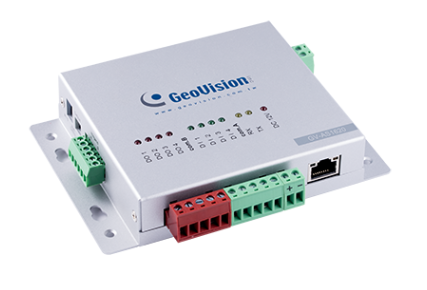

GV-AS1620 controller

Article:
Manufacturer:
Model:
0

Introduction



GV-AS1620 is a single door controller with three types of interfaces, Wiegand, RS-485 and TCP/IP, to accommodate various readers for entry and exit management. Through its I/O pins, it provides not only basic door operations but also alarm, tamper and fire senor applications, as well as allowing LEDs connected to indicate an access granted and denied.



Key Features



• One door IP controller (entry and exit)

• 3 types of interfaces, Wiegand, RS-485 and TCP/IP, supporting 2 readers for each interface

• 4 digital inputs for door contact, exit button, fire contact and tamper contact

• 4 relay outputs for lock, alarm, 2 LED for an access granted and access denied

• DC 12V, 3A / PoE+ (IEEE 802.3at)

• Suitable for door, parking lot and elevator controls

• Stores up to 100,000 cards

• ONVIF (Profile C) conformant



Specifications



GV-ASManager Version

V5.2.0 or later





Hardware



Wiegand Interface

2 Wiegand interfaces, 26 ~ 64-bit format

12V DC power supply, 200 mA

RS-485 Interface

1 RS-485 interface for max. 2 GV-Readers (GV-CR420 / GV-DFR1352 / GV-SR1251 / GV-Reader1251

/ GV-R1352 / GV-RK1352 / GV-WTR)

TCP/IP Interface

RJ-45, 10 / 100 Mbps

1 TCP/IP interface for max. 2 GV-Readers (GV-CR420 / GV-FR2020 / GV-CR1320 / GV-GF1921 / GV-GF1922; GV-FWC with GV-FD8700-FR / GV-VD8700)

Input

Digital I/O

Output

4 inputs, Dry Contact, NO / NC

4 relay outputs (DC 30V, 3A; 110V AC ~ 250V AC, 3A), NO / NC

Power

12V DC, 3A / PoE+ (IEEE 802.3at, provides up to 25.5W)

Operating Temperature

0°C ~ 65°C / 32°F ~ 149°F

Operating Humidity

5% ~ 95% RH (Non-Condensing)

Dimensions

111.4 x 27.5 x 101 mm / 4.39 x 1.08 x 3.98 in (case included)

Weight

235 g / 0.52 lb (case included)

Ingress Protection

IP54

Regulatory

CE, FCC, RoHS compliant
