- 8 megapixel 1 / 2.5 ’’ progressive scan and low light support
- Minimum Illumination 0.04 Lux
- Three streams with H.265 and H.264
- Up to 30 fps at 3840 x 2160 (4K) resolution
- Offline database - 10,000 face profiles
- Vandal Protection (IK10)
- Penetration Protection (IP66)
- Megapixel zoom lens
- P ‐ iris lens for auto iris
- Work in day / night conditions (IR cut-off filter)
- Smart IR
- Wide Dynamic Range (WDR)
- IR LED up to 40 m (130 ft)
- 3 ‐ axis mechanism (tilt / swivel / rotation)
- One touch input and digital output
- Built-in SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10) up to 256Gb, for local data storage
- DC 12V Power over Ethernet (IEEE 802.3af)
- One way audio
- Anti-fog system
- Motion Detection
- Intervention Alarm
- Face recognition
- Text overlay
- Privacy mask
- IP Filtering
- The recording process is controlled using the GV-Edge Recording Manager software (versions for Windows, Mac)
- Support iPhone, iPad and Android
- Android SDK, NDK, AndroVideo SDK
- 4 languages on the web interface
- Support ONVIF (Profile S)

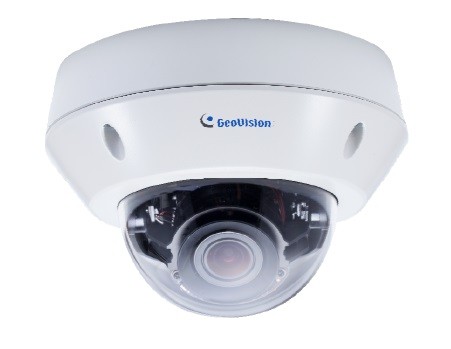

The GV ‐ VD8700 is an outdoor camera with IK10 anti-vandal protection and IP66 penetration protection. The camera supports the H.265 video codec to provide the best compression ratio while maintaining high image quality. For nighttime use, the camera is equipped with an infrared light that works up to 40 meters (130 ft). Wide dynamic range and backlight compensation allow the camera to recognize faces in sharp contrast conditions.

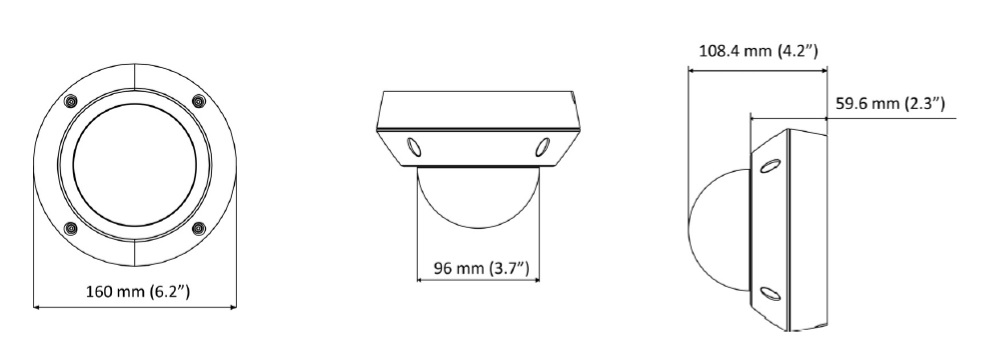

Dimensions
Specification
|
Camera |
||
|
Matrix |
1/2.5"CMOS with progressive layout |
|
|
Image sensor |
3840 (H) x 2160 (V) |
|
|
Min. illumination |
Color |
0,05 lux |
|
B/W |
0,04 lux |
|
|
IR on |
0 lux |
|
|
Shutter speed |
Auto, manual (1/30 ~ 1/8000 сек.) |
|
|
White balance |
Auto, manual (2800K ~ 8500K) |
|
|
Gain control |
Auto |
|
|
Signal/noise ratio |
56 dB |
|
|
WDR |
Yes |
|
|
Dynamic range |
72 dB |
|
|
Lenses |
||
|
For megapixel resolution |
Yes |
|
|
Day/night |
Yes (with removable IR-filter) |
|
|
Focal length |
3,3 ~ 12 mm |
|
|
Max. aperture |
F/1,4 |
|
|
Mounting |
Ø 14 мм |
|
|
Image format |
1/2,5 |
|
|
Horiizontal view angle |
106°~42° |
|
|
Operation |
Focus |
Manual (ш / блок.) |
|
Zoon |
Manual (ш / блок.) |
|
|
IR |
Professional IR imaging system |
|
|
Number of IR LED |
20 IR LED |
|
|
Max IR distance |
40 m (130 ф) |
|
|
Face recognition |
||
|
Illumination |
600 lux |
|
|
Face recognition angle |
Pan |
± 15 |
|
Tilt |
± 15 |
|
|
Max. faces |
Up to 10 |
|
|
Min face resolution |
120 х 120 |
|
|
Operation |
||
|
Video compression |
H.265, H.264 |
|
|
Streaming |
Stream 1 |
H.265 or H.264 |
|
Stream 2 |
H.264 |
|
|
Stream 3 |
H.264 |
|
|
Frame rate |
30 fps at 3840 x 2160 (60/50 Hz) |
|
|
Image settings |
Brightness, contrast, saturation, sharpness, gamma, white balance, anti-flicker, image orientation, shutter speed, backlight compensation, signal-to-noise sensitivity, wide dynamic range, anti-fog, work in low light conditions, noise removal, froze |
|
|
Audio compression |
G.711, AAC (optional) |
|
|
Audio support |
one way audio (microphone) |
|
