- 8 Mpx 1/2.5” progressive scan low lux CMOS
- Min. illumination at 0.04 lux
- Triple streams from H.265 and H.264
- Up to 30 fps at 3840 x 2160 (4K)
- Megapixel varifocal lens
- P-Iris lens for auto Iris control
- Day and Night function (with removable IR-cut filter)
- Intelligent IR
- Wide Dynamic Range (WDR)
- IR distance of up to 40 m (130 ft)
- 3-axis mechanism (pan / tilt / rotate)
- One sensor input and digital output
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) for local storage
- DC 12V / PoE (IEEE 802.3af)
- One-way audio
- Defog
- Motion detection
- Tampering alarm
- Face recognition
- Text overlay
- Privacy mask
- IP address filtering
- Recording assigned by GV-Edge Recording Manager (Windows & Mac)
- Supports iPhone, iPad, Android & 3GPP
- 4 languages on Web interface
- ONVIF (Profile S) conformant
Introduction

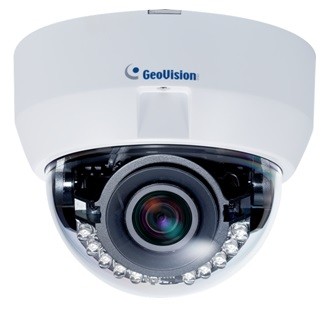

GV-FD8700-FR Fixed IP Dome camera features cutting-edge face recognition technology that allows users to identify important personnel from its database, on the fly. Up to 10,000 face profiles can be defined in the camera’s database, and also categorized to meet various corporate needs, such as facilitating customer service or security management and more. The camera’s face recognition mechanism is effective for a distance of up to 4 m (14 ft) while able to identify up to 10 persons simultaneously. With a recognition time of within 2 seconds, it can quickly identify VIP guests and/or potential intruders. When integrated with GV-VMS, the camera’s face recognition can be used to trigger alerts according to the predefined rules, thereby providing an improved, reliable security management.
As an indoor camera, GV-FD8700-FR can support H.265 video codec to achieve better compression ratio while maintaining high-quality pictures at reduced network bandwidths. For night operations, the camera is equipped with an IR effective distance of up to 40 m (130 ft). Its WDR and Backlight Compensation allow the camera to detect faces in environments with drastic light contrast.

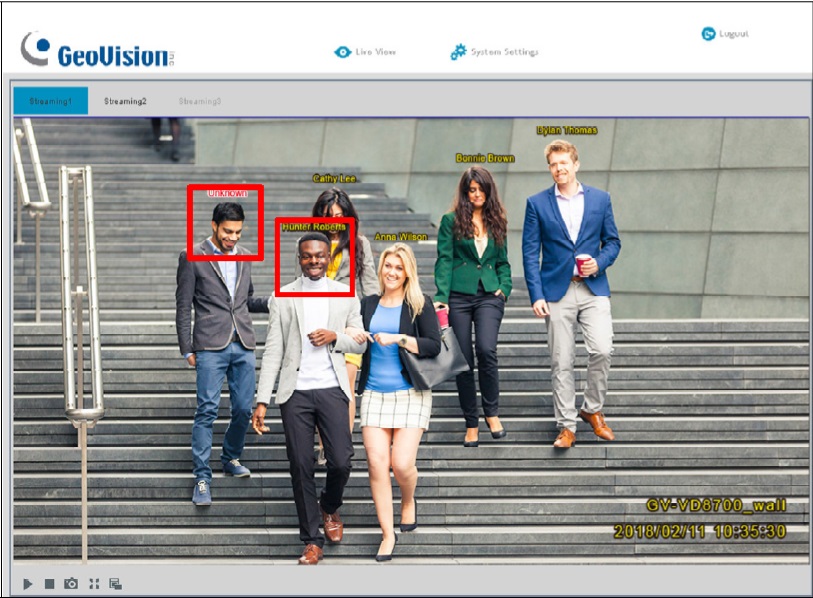

Real-time Face Recognition on Live View

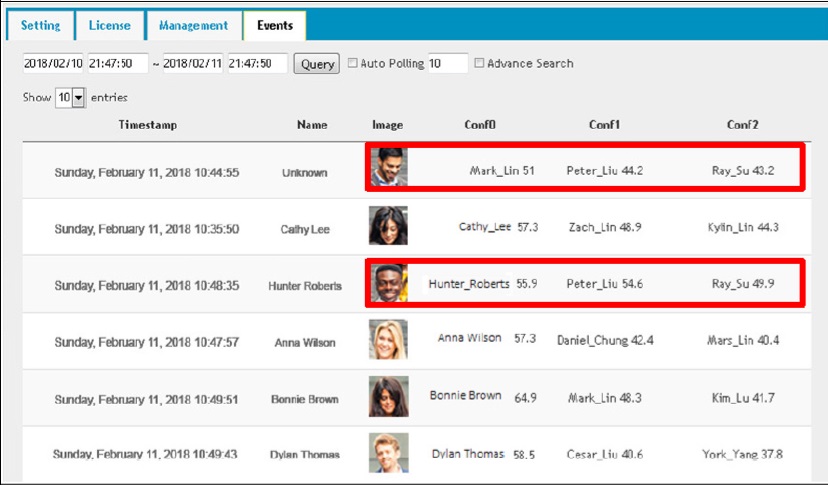

Retrievable Face Events

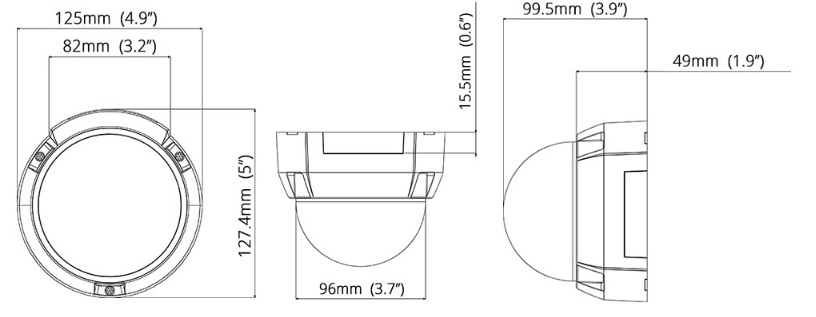

Dimensions
Specifications
|
Camera |
|
||
|
Image Sensor |
1/ |
||
|
Picture Elements |
3840 (H) x 2160 (V) |
||
|
Minimum Illumination |
Color |
0.05 Lux |
|
|
B/W |
0.04 Lux |
||
|
IR ON |
0 Lux |
||
|
Shutter Speed |
Automatic, Manual (1/30 ~ 1/8000 sec) |
||
|
White Balance |
Automatic, Manual (2800K ~ 8500K) |
||
|
Gain Control |
Automatic |
||
|
S/N Ratio |
56 dB |
||
|
WDR |
Yes |
||
|
Dynamic Range |
Up to 96 dB |
||
|
Lens |
|||
|
Megapixel |
Yes |
||
|
Day/Night |
Yes (with removable IR-cut filter) |
||
|
Focal Length |
3.3 ~ |
||
|
Lens Type |
Varifocal |
||
|
Maximum Aperture |
F/1.4 |
||
|
Mount |
Ø |
||
|
Horizontal FOV |
106° ~ 42° |
||
|
Image Format |
1/ |
||
|
Operation |
Focus |
Manual (with lock) |
|
|
Zoom |
Manual (with lock) |
||
|
Iris |
P-Iris |
||
|
Max. Torque (Focus / Zoom Screws) |
0.049 N.m |
||
|
IR LED Quantity |
20 IR LEDs |
||
|
Max. IR Distance |
|
||
|
Face Recognition |
|||
|
Environment |
600 lux |
||
|
Recognition face angle |
Tilt (Up/Down) |
± 15〫 |
|
|
Swing (Left/Right) |
± 15〫 |
||
|
Max. No of Faces |
Up to 10 |
||
|
Min. face image pixel requirement |
120 x 120 |
||
|
Operation |
|||
|
Video Compression |
H.265, H.264 |
||
|
Video Streaming |
Stream 1 from H.265 or H.264 Stream 2 from H.264 Stream 3 from H.264 |
||
