MAIN FEATURES
- One-way and two-way control of 4 doors
- 8 Wiegand 26-64 bit card readers
- 8 GV-Reader and GV-GF fingerprint readers via RS-485 and network
- Built-in 16 digital inputs and 24 relay outputs
- Suitable for controlling doors, parking barriers, as well as controlling access to buttons
- call the elevator.
- Hacking alarm function support
Specification
|
System requirments |
|
|
GV-ASManager version |
GV-ASManager V4.2.3 or higher |
|
Software |
|
|

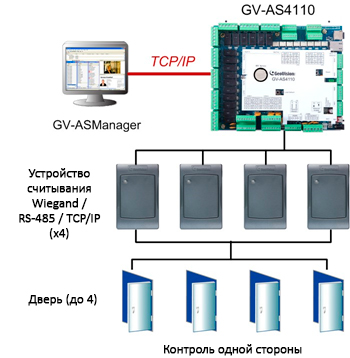

One way control |
4 doors |
|

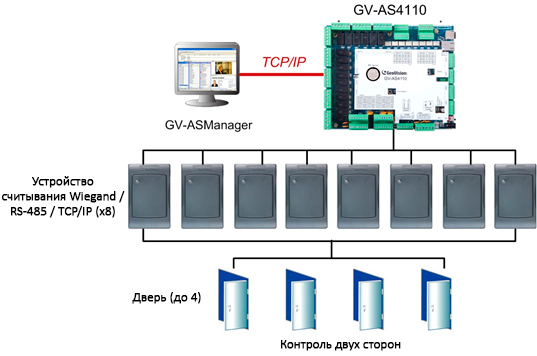

Two-way control |
4 doors |
|
Equipment |
|
|
CPU |
32-bit ARM7TDMI |
|
Users cards |
40 000 cards |
|
Event buffer |
1 000 000 events and entries |
|
Power |
100-250 V AC, 50-60 Hz |
|
Interface RS-485 |
1 interface RS-485 only for fingerprints GV-Reader and fingerprint readers GV-GF (up to 8 devices) |
|
Interface Wiegand |
8 interfaces Wiegand, 26-64 bit format |
|
Power source 12 V DC, 200 мА |
|
|
Interface TCP/IP |
1 interface TCP-IP for network readers GeoVision |
|
Communication |
TCP/IP |
|
Battery |
Interchangeable disk elemets |
|
Input |
16 inputs, dry contact, НР / НЗ |
|
Output |
24 relay outputs (30 V DC, 3 А; 110-250 V AC, 3 А) |
|
Operational temperature |
0-65 °C |
|
Operational humidity |
10% to 90% ОВ (without condensation) |
|
Dimensions (W x H x D) |
210 x 187 x 40 mm |
|
Weight |
900 g |
|
Certification |
CE, FCC, RoHS |
