GV-AS1110 IP Controller with Integrated Reader
Introduction

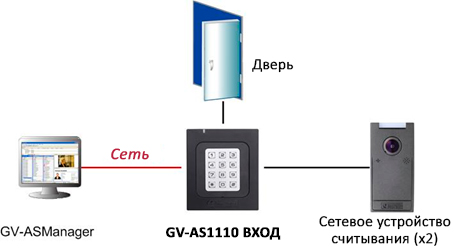

GV-AS1110 is a controller for controlling one door with an integrated reader. The TCP / IP network port on the GV-AS1110 allows you to add two more network card readers to control input and output. The GV-AS1110 supports storing up to one thousand cards offline and up to 40,000 cards when connected to the GV-ASManager. GV-AS1110 programming is done from the keypad or from the GV-ASManager software. GV-AS1110 is suitable for controlling doors, parking barriers, as well as controlling access to the elevator call buttons.
Main features
- 1 door (control from one or two sides)
- 1,000 / 40,000 cards (offline / network mode)
- Convenient keypad programming
- Built-in 2 digital inputs and 1 relay output
- 1 network interface for connecting to the GV-ASManager and 2 TCP / IP readers
- 13.56 MHz integrated card reader
- Built-in burglar alarm sensor
- Sealed enclosure, IP66 degree of protection (for outdoor use)
- Support prohibition of repeated passage on one card
Specification
|
System requirments |
||
|
GV-ASManager version |
GV-ASManager V4.2.3 or higher |
|
|
Equipment |
||
|
CPU |
32-bit ARM7TDMI |
|
|
User cards |
1 000 / 40 000 cards (auto/web mode) |
|
|
Frequency |
13,56 MHz for ISO14443A (Mifare DESFire, Mifare Plus и Mifare Classic) |
|
|
Event buffer |
65 536 events and logs |
|
|
Power |
100-240 V AC, 50-60 Hz |
|
|
TCP/IP interface |
1 interface TCP/IP for GV-CR420 и GV-GF1921 / 1922 |
|
|
Communication protocol |
TCP/IP |
|
|
Digital I/O |
In |
2 ins, dry contact, НР / НЗ |
|
Out |
1 relay output (30 V DC, 1 А; 110-250 V AC, 0,3 А) |
|
|
Supported ID format |
Buil-in reader supports both GID and UID |
|
|
Operational temperature |
-35 °C to 65 °C |
|
|
Operational humidity |
10% to 90% ОВ (without condensation) |
|
|
Dimensions (W x H x D) |
95 x 108 x 23 mm |
|
|
Weight |
270 g |
|
|
Ingression protection |
IP66 |
|
|
Sertificates |
CE, FCC, RoHS |
|
