Introduction

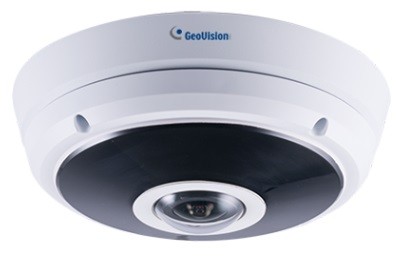

GV-EFER3700 is a 3 MP outdoor fisheye camera that allows you to monitor all angles of a location and it can be installed to the ceiling, wall, wall corner and the pole. Equipped with automatic IR‐cut filter and IR LEDs, GV-EFER3700 is capable of day and night surveillance. The camera’s distorted hemispherical image can be converted into a conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as video recording, privacy mask, and alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV-DVR / NVR / VMS, providing advanced monitoring and video management features.
The camera can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. GV-EFER3700 is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.
Key Features
- 1/2.8’’ progressive scan super low lux CMOS
- Triple streams from H.265, H.264 and MJPEG
- Up to 30 fps at 2048 x1536
- Day and night (with removable IR-cut filter)
- Intelligent IR
- Vandal resistance (IK8)
- Ingress protection (IP67)
- 12V DC / PoE (IEEE 802.3af)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- One sensor input and alarm output
- Digital Object Tracking
- Provides 360° and 180° panorama view
- Different angle of view accessible by multiple users at the same time
- Playback from any view angle and zoom level
- No mechanical moving parts
- Two-way audio
- Wide Dynamic Range Pro (WDR Pro)
- Low lux enhancement
- 3D noise reduction
- Smart streaming
- Tampering alarm
- Virtual PTZ function
- Auto Pan function
- Privacy mask
- Visual automation
- Text overlay
- 31 languages on Web interface
- ONVIF (Profile S) conformant
- Recording assigned by GV-Edge Recording Manager (Windows version)

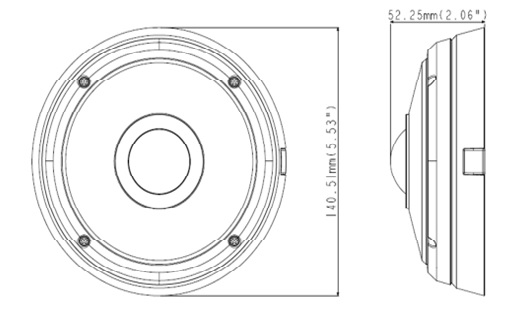

Dimensions
Specifications
|
Camera |
GV-EFER3700 |
|
|
Image Sensor |
1/2.8” progressive scan super low lux CMOS |
|
|
Picture Elements |
2048 (H) x 1536 (V) |
|
|
Minimum Illumination |
Color |
0.001 Lux |
|
B/W |
0.001 Lux |
|
|
IR On |
0 Lux |
|
|
Shutter Speed |
Automatic, Manual (1/5 ~ 1/16000 sec.) |
|
|
White Balance |
Automatic, Manual (2800K ~ 8500K) |
|
|
Gain Control |
Automatic |
|
|
S/N Ratio |
54 dB |
|
|
WDR |
WDR Pro |
|
|
Dynamic Range |
Up to 120 dB |
|
|
Optics Lens |
||
|
Megapixel |
Yes |
|
|
Day/Night |
Yes (with removable IR‐cut filter) |
|
|
Lens Type |
Fixed |
|
|
Focal Length |
1.24 mm |
|
|
Maximum Aperture |
F/1.8 |
|
|
Mount |
M12 |
|
|
Image Format |
1/3” |
|
|
Horizontal FOV |
185° |
|
|
Operation |
Focus |
Fixed |
|
Zoom |
Fixed |
|
|
Iris |
Fixed |
|
|
IR LED Quantity |
3 IR LEDs |
|
|
Max. IR Distance |
20 m (65 ft) |
|
|
Operation |
||
|
Video Compression |
H.265, H.264, MJPEG |
|
|
Video Streaming |
Stream 1 from H.265 or H.264 Stream 2 from H.265, H.264 or MJPEG Stream 3 from H.265, H.264 or MJPEG |
|
|
Frame Rate |
50Hz: 25 fps at 2048 x 1536, 25 fps at 1440 x 1376 60Hz: 30 fps at 2048 x 1536, 30 fps at 1440 x 1376 *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). |
|
|
Image Setting |
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux Enhancement, Denoise, Metering |
|
|
Audio Compression |
G.711, AAC (Optional) |
|
|
Audio Support |
Two‐way Audio (external microphone and speaker required) |
|
|
Sensor Input |
1 input (Dry Contact) |
|
|
Sensor Output |
1 digital output (200mA 5V DC) |
|
|
Video Resolution |
||
|
Main Stream |
4:3 |
2048 x 1536 (Default) |
|
20:19 |
1440 x 1376, 1280 x 1200 |
|
|
Sub Stream |
4:3 |
640 x 480 (Default) |
|
20:19 |
640 x 608 |
|
|
Third Stream (Closed by Default) |
4:3 |
640 x 480 |
|
20:19 |
640 x 608 |
|
|
Network |
||
|
Interface |
10/100 Ethernet |
|
|
Protocol |
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA |
|
|
Security Feature |
- No default ID and Password - 802.1x authentication - HTTPS with a SSL certificate stored in the camera - 256-bit AES encryption (requires firmware V1.14 or later working with GV-VMS V18.1 or later) |
|
|
Mechanical |
||
|
Temperature Detector |
Yes |
|
|
Connectors |
Power |
2‐pin terminal block (DC 12V, 1.25A), PoE |
|
Ethernet |
Ethernet (10/100 Base-T), RJ-45 |
|
|
Audio |
1 In (External microphone, 3.5 mm / 0.14") 1 Out (Stereo phone jack, 3.5 mm / 0.14") |
|
|
Digital I/O |
3-pin terminal block, pitch 2.5 mm (0.1”) |
|
|
Local Storage |
Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported. |
|
|
LED Indicator |
2 LEDs: Power / Status |
|
|
General |
||
|
Operating Temperature |
Start-up |
-20°C ~ 50°C (-4°F ~ 122°F) |
|
Operation |
-30°C ~ 50°C (-22°F ~ 122°F) |
|
|
Humidity |
10% to 90% (no condensation) |
|
|
Power Source |
12V DC / PoE (IEEE 802.3af) |
|
|
Max. Power Consumption |
10.5 W |
|
|
Dimension |
Ø 140.5 x 52.2 mm m (5.5” x 2.05”) |
|
|
Weight |
670 g (1.47 lb) |
|
|
Ingress Protection |
||
|
Vandal Resistance |
IK8 |
|
|
Regulatory |
CE, FCC, RCM, LVD, RoHS compliant |
|
|
Power over Ethernet |
||
|
PoE Standard |
PoE (IEEE 802.3af Power over Ethernet / PD) |
|
|
PoE Power Supply Type |
End-Span, Mid-Span |
|
|
PoE Power Output |
Per Port 48V DC, 350mA. Max. 15.4 watts |
|
