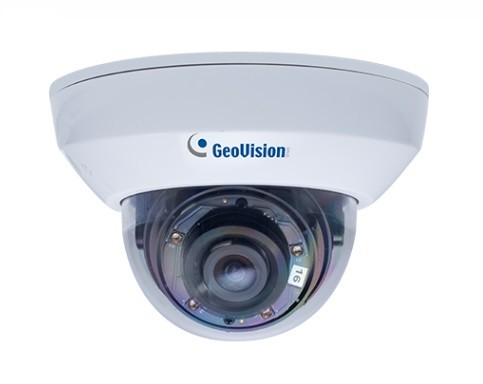

GV‐MFD2700 series: IP-camera 2 MP, H.265, for ultra-low illumination, WDR Pro, IR, stationary miniature dome camera
Description
GV‐MFD2700 is a 2 MP stationary miniature IP-camera for indoors installation with three-axial movement mechanism that provides ease of installation and flexibility. GV‐MFD2700 series cameras use H.265 codec whick allows to improve compression ratio and reduces required bandwidth network while maintaining high image quality. Thanks to the built-in WDR Pro wide dynamic range technology, these cameras can work with scenes that contain contrasting, bright light sources and produce clear, legible images. The cameras are equipped with a CMOS-matrix for ultra-low illumination, which allows you to get an image in color, at a very low level of illumination.
- 2 MP Matrix 1/2,8" CMOS, progressive layout, for ultra-low illumination
- Min. illumination 0.004 lux
- Double stream in H.265, H.264 and MJPEG
- Up to 30 fps at 1920 x 1080 (Full HD)
- Two-way audio
- Smart IR-lighting
- Three-axial movement (rotation/tilt/turn)
- 1 in for sensor and 1 out for signalistation
- Built-in microSD (SD/SDHC/SDXC/UHS-I) slot for local data storage
- Day-and-Night mode (with removable IR-cut filter)
- Megapixel lenses
- 12 VDC/ PoE (IEEE 802.3af)
- WDR Pro
- 3D-noise reduction
- Smart streaming
- Defogging
- Movement detection
- Intrusion alarm
- Text overlaying
- IP-adress diltration
- Recording is ordered by GV-Edge Recording Manager (Windows, Mac OS) dispetcher
- Support for iPhone, iPad, Android and 3GPP
- 31 languages in web-interface
- Complies with requirments for ONVIF profile S
|
Model |
Diaphragm |
Focus (mm) |
Max. aperture |
Matrix format |
|
GV‐MFD2700‐0F |
Fixed |
2.8 mm |
F/2.0 |
1/2.7” |
|
GV‐MFD2700‐2F |
Fixed |
3.8 mm |
F/1.8 |
1/2.7" |
Dimensions
Specification
|
Camera |
GV‐MFD2700‐0F |
GV‐MFD2700‐2F | |
|
Matrix |
Matrix 1/2,8" CMOS, progressive layout, for ultra low illumination |
||
|
Resolution |
1920 (D) x 1080 (H) |
||
|
Min. illumination
|
Color |
0,005 lux |
|
|
B/W |
0,004 lux |
||
|
IR |
0 lux |
||
|
Exposure |
Auto, manual (1/5 – 1/16000 s) |
||
|
White balance |
Auto, manual (2800 – 8500K) |
||
|
Gain control |
Auto (AGC) |
||
|
Signal/noise ratio |
56 dB |
||
|
WDR Pro |
+ |
||
|
Dinamic range |
up to 130 dB |
||
|
Lenses |
|||
|
Megapixel |
Yes |
||
|
Day-Night |
Yes (with removable IR-cut filter) |
||
|
Lenses type |
Fixed |
||
|
Focal distance |
2,8 mm |
3,8 mm |
|
|
Max. aperture |
F/2.0 |
F/1.8 |
|
|
Mounting |
Ø12 mm |
||
|
Matrix format |
1/2.7” |
||
|
Horizontal viewing angle |
100° |
72° |
|
|
Operation
|
Focus |
Fixed |
|
|
Zoom |
Fixed |
||
|
Diaphragm |
Fixed |
||
|
IR-diods |
4 IR-diods |
||
|
Max. distance in IR mode |
20 m (65,6 feet) |
||
|
Operation |
|||
|
Comression formats |
H.265, H.264, MJPEG |
||
|
Streaming |
Stream 1 in H.265 or H.264 Stream 2 in H.265, H.264 or MJPEG |
||
|
Fps |
50 Hz: 25 fps at 1920 x 1080 60 Hz: 30 fps at 1920 x 1080 |
||
|
Video Resolution |
||
|
Main Stream
|
4:3 |
1280 x 960, 640 x 480 |
|
16:9 |
1920 x 1080 (Default), 1280 x 720, 640 x 360 |
|
|
5:4 |
1280 x 1024, 640 x 512 |
|
|
Sub Stream
|
4:3 |
1024 x 768, 640 x 480, 320 x 240 |
|
16:9 |
1280 x 720, 640 x 360 (Default), 448 x 256 |
|
|
5:4 |
1280 x 1024, 640 x 512, 320 x 256 |
|
|
Third Stream |
4:3 |
640 x 480, 320 x 240 |
|
(Closed by |
16:9 |
640 x 360, 448 x 256 |
|
Default) |
5:4 |
640 x 512, 320 x 256 |
|
Network |
||
|
Interface |
|
10/100 Ethernet |
|
Protocol |
|
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S, T), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA |
|
Security Feature |
|
|
|
Mechanical |
||
|
Temperature Detector |
Yes |
|
|
Camera Angle Adjustment |
Pan |
-45° ~ 45° |
|
Tilt |
0° ~ 70° |
|
|
Rotate |
0° ~ 360° |
|
|
Connectors
|
Power |
2-pin terminal block (DC 12V, 1.25A), PoE |
|
Ethernet |
Ethernet (10/100 Base-T), RJ-45 cable |
|
|
Audio |
1 In (built-in or external microphone) 1 Out (stereo phone jack, 3.5 mm / 0.14'') |
|
|
Digital I/O |
I/O wires |
|
|
Local Storage |
Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported. |
|
|
LED Indicator
|
2 LEDs: Power, Status |
|
|
General |
||
|
Environment |
Start-up |
0°C ~ 50°C (32°F ~ 122°F) |
|
Temperature |
Operation |
|
|
Humidity |
10% to 90% (no condensation) |
|
|
Power Source |
12V DC / PoE (IEEE 802.3af) |
|
|
Max. Power Consumption |
12V DC, 6.5W |
|
|
Dimensions (without lens) |
110 x 72.83 mm (4.33'' x 2.86'') |
|
|
Weight |
200 g (0.44 lb) |
|
|
Regulatory |
CE, FCC, RCM, LVD, RoHS, TAICS (IoT Cyber Security) compliant |
|
|
Power over Ethernet |
||
|
PoE Standard |
PoE (IEEE 802.3af Power over Ethernet / PSE) |
|
|
PoE Power Supply Type |
End-Span and Mid-Span |
|
|
PoE Power Output |
Per Port 48V DC, 350 mA, Max. 15.4 watts |
|
|
Web Interface |
||
|
Installation Management |
Web-based configuration |
|
|
Maintenance |
Firmware upgrade through Web Browser or Utility |
|
|
Access from Web Browser |
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ |
|
|
Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
|
|
Applications |
||
|
Software Supported |
GV-DVR / NVR (V8.7.1.0), GV-VMS (V15.11.3.0), GV-Edge Recording Manager (V1.2.0.0), GV-Center V2 (V15.10.0.0), GV-Recording Server (V1.3.0.0), GV-Redundant / Failover Server (V1.1.0.0) |
|
|
Smart Device Access |
GV-Eye for iOS and Android |
|
|
Live Viewing |
Browser (IE, Chrome, Firefox, Safari), Mobile app |
|
