Description

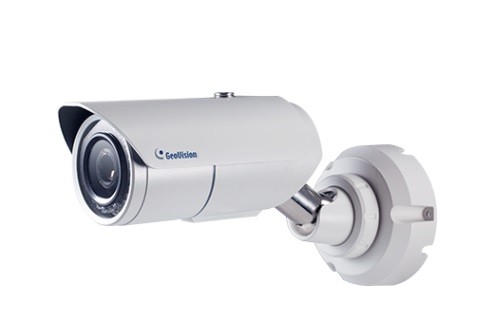

Target Bullet are lightweight cameras designed for placement in an outdoor (street) environment. They comply with IP67 dust and water protection and are fully protected from dust and water jets.
This camera also provides automatic and precise exposure control with the P-iris aperture, which enhances image clarity and contrast. The camera introduces an entry-level surveillance solution with all the essential features and superior image quality..
- Matrix 1/2,8" CMOS, progressiv layout, for ultra-low illumination
- Double stream in H.264, H.265 and MJPEG
- Up to 30 fps at 1920 x 1080
- Cmart IR-backlight
- Day and night function (with removable IR-cut filter)
- Lenses for megapixel resolution
- Lenses with P-iris for aitomatic iris control
- Antivandal protectiom (IK10 for metallic cases)
- Ingression protection (IP67)
- Power supply 12 V DC / PoE (IEEE 802.3af)
- WDR
- 3D-noise reduction
- Defogging
- Movement detection
- Intrusion alarm
- Text overlaying
- Private masks
- IP-filtration
- Supports iPhone, iPad, Android and 3GPP
- 31 languages in web-interface
- Complies with requirments for profile S ONVIF
Dimensions
Specification
|
Camera |
|||
|
Matrix |
Matrix 1/2.8" CMOS, progressive layout, for ultra-low illumination |
||
|
Resolution |
1920 (Г) x 1080 (В) |
||
|
Min. illumination |
Color |
0,005 lux |
|
|
B/W |
0,004 lux |
||
|
IR |
0 lux |
||
|
Exposure |
Auto, manual (1/30 – 1/16000 s) |
||
|
White balance |
Auto, manual (2800K – 8500K) |
||
|
Gain control |
Auto (AGC) |
||
|
Signal/noise ratio |
56 dB |
||
|
Wide dynamic range (WDR) |
Yes |
||
|
Dynamic range |
Up to 72 dB |
||
|
Lenses |
|||
|
Megapixel |
Yes |
||
|
Day and Night |
Yes (with removable IR-cut filter) |
||
|
Lenses type |
Zoom lenses |
||
|
Focal distance |
3 ~ 9 mm |
||
|
Max. aperture |
F/1,7 |
||
|
Mounting |
Ø 14 mm |
||
|
Horizontal FOV |
102° ~ 40° |
||
|
Matrix format |
1/2.7” |
||
|
Operation |
Focus |
Manual (blocking) |
|
|
Zoom |
Manual (blocking) |
||
|
Iris |
Controlled P-Iris |
||
|
Number of IR-diods |
24 IR-diods |
||
|
IR distance |
|
||
|
Operation |
|||
|
Video comression |
H.264, H.265, MJPEG |
||
|
Streaming |
Double stream in H.264, H.265 and MJPEG |
||
|
Frame rate |
30 fps at 1920 x 1080 (60/50 Hz) |
||
|
Image adjustment |
Brightness, contrast, saturation, sharpness, gamma, white balance, anti-flicker, image orientation, shutter speed, d / n sensitivity, backlight compensation, wide dynamic range (WDR), fog compensation, noise reduction, determination of optimal exposure, image enhancement at low light |
||
|
Audio recording |
n/a |
||
|
Video resolution |
|||
|
Main stream |
4 : 3 |
1280 x 960, 640 x 480 |
|
|
16 : 9 |
1920 x 1080 (default), 1280 x 720 |
||
|
5 : 4 |
1280 x 1024, 640 x 512 |
||
|
Substream |
4 : 3 |
640 x 480, 320 x 240 |
|
|
16 : 9 |
640 x 360 (default) |
||
|
5 : 4 |
640 x 512, 320 x 256 |
||
