Description

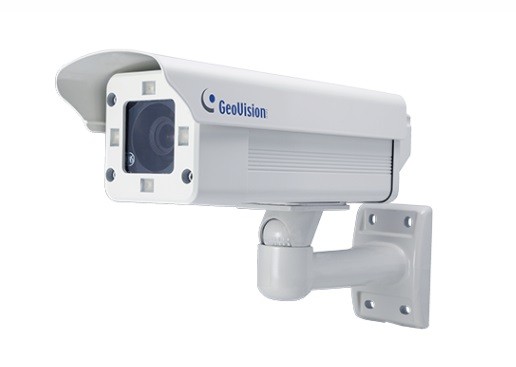

GV-BX4700-E is a camera for outdoor use, designed to operate at extreme temperatures. The camera complies with protection standards IP67 and IK10, and is also equipped with infrared LEDs and a removable IR cut-off filter for working day and night.
Features
- 4 megapixel, progressive layout, CMOS
- Double stream in H.264 and MJPEG
- Up to 20 fps at 2592 x 1520
- Day and night function (with removable IR-cut filter)
- Antivandal protection (IK10 for metall cases)
- Ingression protection (IP67)
- Built-in heater and fan
- Supports TV-out
- 2-way audio
- Built-in slot for microSD for local data storage
- Wide dynamic range (WDR)
- 3D-noise reduction
- Defogging
- Movement detection
- intrusion alarm
- Private masks
- Text overlaying
- IP-adress filtration
- Power supply PoE+ (IEEE 802.3at)
- Lenses for megapixel
- Supports iPhone, iPad, Android and 3GPP
- 31 lang in web-interface
- Complies with requirments for profile S ONVIF

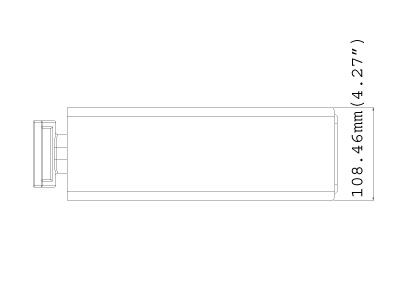

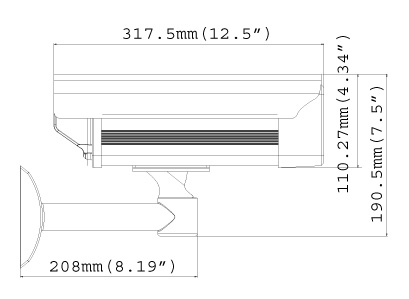

Dimensions
Specification
|
Camera |
||
|
Matrix |
1/3 inches, progressive layout, CMOS-sensor |
|
|
Resolution |
2592 (Г) x 1520 (В) |
|
|
Min. illumination |
Color |
0,03 lux |
|
B/W |
0,02 lux |
|
|
IR on |
0 lux |
|
|
Exposure |
Auto, manual (1/5 – 1/16000 с) |
|
|
White balance |
Auto, manual (2800K – 8500K) |
|
|
Gain control |
Auto (AGC) |
|
|
Signal/noise ratio |
45 dB |
|
|
Backlight compensation |
Yes |
|
|
Lenses |
||
|
Megapixel |
Yes |
|
|
Day-Night |
Yes (with removable IR-cut filter) |
|
|
Lenses type |
Zoom lenses |
|
|
Focal distance |
3 – 10.5 mm |
|
|
Max. aperture |
F/1,4 |
|
|
Mounting |
CS |
|
|
Matrix format |
1/2.7” |
|
|
Horizontal FOV |
78° – 31° |
|
|
Operation |
Focus |
Manual (interlock) |
|
Zoom |
Manual (interlock) |
|
|
Iris |
Manual (interlock) |
|
|
IR-diods |
4 |
|
|
Max. IR distance |
30 m (98 feet) |
|
|
Max. torque |
0,049 N/m |
|
|
Operation |
||
|
Video comression |
H.265, H.264, MJPEG |
|
|
Streaming |
Three streams in H.265, H.264 и MJPEG |
|
|
Frame rate |
20 fps at 2560 x 1440 |
|
|
Image adjustment |
Brightness, contrast, saturation, sharpness, gamma, white balance, anti-flicker, image orientation, shutter speed, d / n sensitivity, backlight compensation, wide dynamic range (WDR), fog compensation, noise reduction, determining the optimal exposure |
|
|
Audio compression |
G.711, AAC (optional) |
|
|
Audio recording |
2-way audio |
|
