GV-EBL4702 Series 4MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera
-
1/
- Min. illumination at 0.02 lux
- Triple streams from H.265, H.264, and MJPEG
- Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Day/Night function (with removable IR-cut filter)
- Intelligent IR
-
IR distance up to
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Smart streaming
- Defog
- Text overlay
- Tampering alarm
- 3D noise reduction
- IP address filtering
- Recording assigned by GV-Edge Recording Manager (Windows & Mac)
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Introduction
The Target Bullet Camera is a lightweight camera designed for outdoor environments. It adheres to the IP67 standard and has full protection against dust and jets of water. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

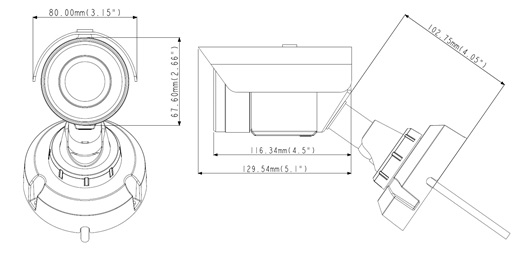

Dimensions
Specifications
|
Camera |
GV-EBL4702-1F |
GV-EBL4702-2F |
GV-EBL4702-3F |
|
|
Image Sensor |
1/3” progressive scan super low lux CMOS |
|||
|
Picture Elements |
2592 (H) x 1520 (V) |
|||
|
Minimum Illumination |
Color |
0.03 Lux |
||
|
B/W |
0.02 Lux |
|||
|
IR ON |
0 Lux |
|||
|
Shutter Speed |
Automatic, manual (1/5 ~ 1/16000 sec) |
|||
|
White Balance |
Automatic, manual (2800K ~ 8500K) |
|||
|
Gain Control |
Automatic |
|||
|
S/N Ratio |
50 dB |
|||
|
WDR |
WDR Pro |
|||
|
Dynamic Range |
Up to 120 dB |
|||
|
Lens |
||||
|
Megapixel |
Yes |
|||
|
Day/Night |
Yes (with removable IR-cut filter) |
|||
|
Lens Type |
Fixed |
|||
|
Focal Length |
6 mm |
3.8 mm |
2.8 mm |
|
|
Maximum Aperture |
F/2.0 |
F/1.8 |
F/2.0 |
|
|
Mount |
Ø12 mm |
|||
|
Horizontal FOV |
51° |
72° |
96° |
|
|
Image Format |
1/2.7” |
|||
|
Operation |
Focus |
Fixed |
||
|
Zoom |
Fixed |
|||
|
Iris |
Fixed |
|||
|
IR LED Quantity |
6 IR LEDs |
|||
|
Max. IR Distance |
30 m (100 ft) |
|||
|
Operation |
||||
|
Video Compression |
H.265, H.264, MJPEG |
|||
|
Video Stream |
Stream 1 from H.265 or H.264 Stream 2 from H.265, H.264 or MJPEG Stream 3 from H.265, H.264 or MJPEG |
|||
|
Frame Rate |
50 Hz: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520 60 Hz: 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520 |
|||
|
Image Setting |
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux Enhancement, Denoise and Metering |
|||
|
Audio Support |
N/A |
|||
