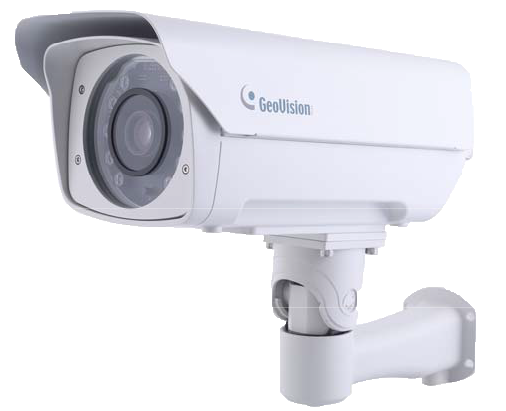

Камера розпізнавання номерних знаків GV-LPR2800-DL (deep learning)

Артикул:
Виробник:
Модель:
0
  • Built-in deep learning LPR processor for license plate recognition Double-lane recognition
  • 1/2.8” progressive scan super low lux CMOS
  • Min. illumination at 0.04 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 60 fps at 1920 x 1080
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removal IR-cut filter)
  • Wide Dynamic Range Pro (WDR Pro)
  • DC 12 V / PoE (IEEE 802.3bt)
  • Ingress protection (IP68)
  • Vandal resistance (IK10 for metal casing)
  • Two-way audio
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Digital I/O (2 in / 2 out)
  • Built-in heater and fan
  • Recognize vehicles with speeds up to 100 km/h (62 mph)
  • Standalone database
  • Recognized plate numbers export
  • Defog
  • Motion detection
  • Privacy mask
  • Text overlay
  • IP address filtering
  • Supports iPhone, iPad, Android & 3GPP
  • ONVIF (Profile S) compliant
  • 31 languages on Web interface
  • CE, FCC, LVD, RoHS compliant

Deep Learning LPR camera



GV-LPR2800-DL is capable of recognizing license plate numbers with its built-in deep learning LPR processor. GV-LPR2800-DL can compare captured license plates either with its on-the-edge standalone database, or the database stored at GV-ASManager, an access control system. When there is a match, GV-LPR2800-DL can grant access for the vehicle by opening a gate or barrier.



GV-LPR2800-DL is a 2 MP color network camera designed for recognition of non-reflective license plates on vehicles traveling at up to 100 km/h (62 mph). With its multiple high-power LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and capture clear license plate images for single- or dual-lane scenarios under low-light conditions. It adheres to IP68 and IK10 standards and is able to operate within a temperature range of -40°C (-40°F) to 50°C (122°F) .



Specifications

Камера

Image Sensor

1/2.8" progressive scan super low lux CMOS

Minimum

Illumination

Color

0.05 lux

B/W

0.04 lux

Picture Elements

1920 (H) x 1080 (V)

Shutter Speed

Automatic: 1/500 ~ 1/16,000 sec

Manual: 1/120 ~ 1/16,000 sec

S/N Ratio

56 dB

WDR Pro

Yes

Dynamic Range

130 dB

Max. Speed

100 km/h (62 mph)

Lens

Megapixel

2 MP

Day/Night

Yes (with removable IR-cut filter)

Lens Type

Varifocal

Focal Length

5 ~ 50 mm

Horizontal FOV

50.9°~ 7.6°

Maximum Aperture

F/1.6

Mount

CS Mount

Image Format

1/2.7"



Operation



Focus

Manual (w/lock)

Zoom

Manual (w/lock)

Iris

DC-Iris

IR LED Quantity

10 high power IR LEDs

IR Distance

30 m (100 ft)

Operation

Video Compression

H.265, H.264, MJPEG

Video Stream

Triple streams from H.265, H.264 and MJPEG

Frame Rate

60/50 fps at 1920 x 1080 (60/50 Hz)

* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)

Image Setting

Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, Defog, Denoise, Metering

Audio Compression

G.711

Audio Support

Two-way audio (external microphone and speaker required)

Digital I/O

2 In / 2 Out

Video Resolution



Main Stream



4:3

1280 x 960

16:9

1920 x 1080 (Default), 1280 x 720

4:3

1024 x 768, 640 x 480, 320 x 240

Sub Stream

16:9

1280 x 720, 640 x 360 (Default), 448 x 256

4:3

640 x 480, 320 x 240

Third Stream


16:9

640 x 360, 448 x 256

Network

Interface

10/100/1000 Base-T Ethernet, RJ-45 connector

Protocol

DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile

S), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Security Feature

  • No default ID and Password
  • 802.1x authentication
  • HTTPS with SSL certificate stored within the camera
  • 256-bit AES encryption (requires working with GV-VMS V18.1 or later)

Mechanical

Temperature Detector

Yes

Camera

Adjustment

 Pan

0° ~ 330°

  Tilt

0° ~ 90°









Connectors





Power

2-pin terminal block

Ethernet

Ethernet (10/100/1000 Base-T), RJ-45 cable

Audio

1 In (microphone jack, 3.5 mm / 0.14”)

1 Out (stereo phone jack, 3.5 mm / 0.14”)

Digital I/O

2 In / 2 Out

RS-485

RS-485+ / RS-485- (for recognition data output)

Local Storage

Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) * UHS-II card types not supported.

LED Indicator

N/A

General

Operating Temperature

-40 °C ~ 50 °C (-40 °F ~ 122 °F)

Humidity

10% ~ 90% (non-condensing)

Power Source

DC 12 V, 5A / PoE (IEEE 802.3bt)

Max. Power Consumption

45 W

Dimensions

360 x 157 x 137.5 mm (14.17" x 6.18" x 5.41")

Weight

4.34 kg (9.57 lb)

Cable Length

1 m (3.28 ft)

Ingress Protection

IP68

Vandal Resistance

IK10 for metal casing

Heater On

-40°C ~ 5°C (-40° ~ 41°F)

Fan

Constantly on

Regulatory

CE, FCC, RCM, RoHS compliant

Region of License Plate

Taiwan

Power over Ethernet

PoE Standard

PoE (IEEE 802.3bt / PD)

PoE Power Supply Type

End-span and Mid-span

PoE Power Output

Per Port 54 V DC, 1.2 A, Max. 60 W

Web Interface

Installation & Management

Web-based configuration

Firmware Upgrade

Firmware upgrade through Web Browser or Utility

Access from Web Browser

Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ

Language

Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew /Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai /Traditional Chinese / Turkish

Applications

LPR Management

GV-ASManager V5.3.0 or later

Software Supported

GV-DVR / NVR (V8.8.0), GV-VMS (V17.4.0 / V18.2.0), GV-Control Center (V3.8.0), GV-Center V2 / Vital Sign Monitor (V18.2.0), GV-Edge Recording Manager for Windows (V1.4.0), GV-Recording Server / Video Gateway (V2.0.0), GV-Redundant / Failover Server (V1.1.0.0)

Smart Device Access

GV-Eye for Android and iOS

Live Viewing

Browser (IE, Chrome, Firefox, Safari), Mobile app
