IP-camera fishye GV-FER12700

Article:
Manufacturer:
Model:
0

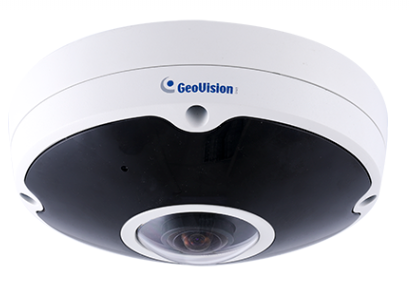

GV-FER12700 12MP H.265 Low Lux WDR IR Fisheye Rugged IP Camera



Introduction



GV-FER12700 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling and the wall. GV-FER12700 supports H.265 video codec to achieve better compression ratio while maintaining high video quality at reduced network bandwidths. Equipped with automatic IR-cut filter and IR LEDs, GV-FER12700 is capable of day and night surveillance. Without installing any software, you can watch live view and utilize functions such as video recording, privacy mask and alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV-DVR / NVR / VMS, providing advanced monitoring and video management features.



Key Features

  • 1/1.7'' progressive scan CMOS
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 4000 x 3000
  • Day and night (with removable IR-cut filter)
  • Wide Dynamic Range (WDR)
  • Intelligent IR
  • Vandal resistance (IK10+ for metal casing)
  • Ingress protection (IP67)
  • 12V DC / PoE+ (IEEE 802.3at)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • USB slot for WiFi adapter or USB hard drive
  • One sensor input and alarm output
  • Built-in microphone
  • Digital Object Tracking
  • Provides 360° and 180° panorama view
  • Stereographic projection to reduce the distortion of the image
  • Different angle of view accessible by multiple users at the same time
  • Playback from any view angle and zoom level
  • No mechanical moving parts
  • Two-way audio
  • Low lux enhancement
  • 3D noise reduction
  • Smart streaming
  • Tampering alarm
  • Virtual PTZ function
  • Auto Pan function
  • Privacy mask
  • Visual automation
  • Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • Recording assigned by GV-Edge Recording Manager (Windows version)
  • TAICS IoT Cyber Security certified

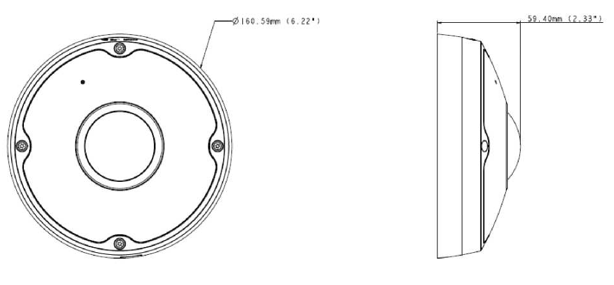

Dimensions





Specification



System Requirements

CPU

Intel Core i5-4670, 3.40 GHz

Memory

DDR3 8 GB RAM

On Board Graphics

Intel HD Graphics 4600 (Version of driver from year 2014 or later required)

Camera

Image Sensor

1/1.7” progressive scan CMOS

Picture Elements

4000 (H) x 3000 (V)

Color

0.1 Lux

Minimum

Illumination           /

0.05 Lux

IR On

0 Lux

Shutter Speed

Automatic, Manual (1/5 ~ 1/16000 sec)

White Balance

Automatic, Manual (2800K ~ 8500K)

Gain Control

Automatic

S/N Ratio

52 dB

WDR

Yes

Dynamic Range

Up to 72 dB

Optics Lens

Megapixel

Yes

Day/Night

Yes (with removable IR-cut filter)

Lens Type

Fixed

Focal Length

1.2 mm

Maximum Aperture

F/2.2

Mount

M12

Image Format

1/1.7”

Horizontal FOV

180°

Focus

Fixed

Operation            Zoom

Fixed

Iris

Fixed

IR LED Quantity

6 IR LEDs

Max. IR Distance

30 m (100 ft)

Operation

Video Compression

H.265, H.264, MJPEG

Video Streaming

Stream 1 from H.265 or H.264

Stream 2 from H.265, H.264 or MJPEG

Stream 3 from H.265, H.264 or MJPEG
