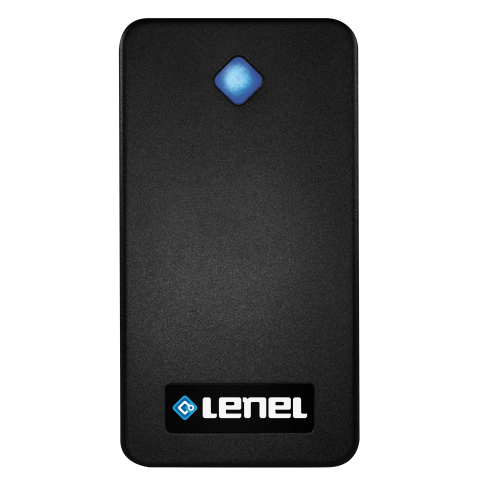

LenelS2 Multi-Technology Mini-Mullion Reader LNL-R11330-05TB

Артикул:
Производитель:
Модель:
0
Lenel® BlueDiamond mobile readers are part of the complete BlueDiamond mobile solution, incorporating Bluetooth® 4.0 low-energy technology.

Simultaneous support for a wide range of smart cards and proximity cards means BlueDiamond readers provide a bridge from legacy plastic badges to cardless mobile access control, allowing seamless integration into existing locations.

Economical and flexible, BlueDiamond readers are ideal for enhancing freedom of movement in the workplace, allowing employees to have their access credentials on the smart devices they already carry. And because BlueDiamond mobile credentials can be read from a distance of up to 30 ft (9M), the BlueDiamond solution is well-suited for applications where long-read range is important.

BlueDiamond readers support the Supervised F/2F (SF/2F) protocol, in addition to Wiegand, OSDP and OSDP SC. Support for SF/2F will provide a lower cost alternative to a 'rip and replace' strategy for Casi-Rusco customers. It will also allow legacy customers to migrate to OnGuard® in smaller steps as budgets permit, while providing future-proof technologies in DESFire and our BlueDiamond mobile credentials.
SIA™ (Security Industry Association) OSDP™ (Open Supervised Device Protocol) support, coupled with Secure Channel encryption, provides continuous monitoring of reader state and operation, data security between the reader and access panel, and simplified wiring. Wiegand and Clock/Data formats are also supported for interfacing with legacy systems. BlueDiamond readers also support OSDP file transfer, enabling customers to send firmware updates as well as reader configuration changes, all from the controller directly to BlueDiamond readers.

Features & Functionality

  • Support for Lenel BlueDiamond mobile credentials via Bluetooth 4.0 low-energy
  • Multi-tech models offer simultaneous support for:  125kHz proximity cards  - HID® Proximity  - AWID® Proximity  - CASI/GE Security ProxLite 13.56MHz smart cards  - Mifare® DESFIRE EV1/EV2  - Mifare Classic - ISO 14443  - Vicinity Card Serial Number - ISO 15693  - HID® iClass Card Serial Number (CSN)
  • W iegand, SF/2F or OSDP with or without secure channel encryption, auto-configuring with Lenel access panels
  • Slim profile
  • Fingerprint-resistant black textured finish
  • Optical tamper switch
  • 5-year limited warranty



Mechanical

Dimensions

3.8 x 2.1 x 0.8 in

96 x 52 x 21mm

Housing

Molded polycarbonate/ABS

Finish

Black, textured, fingerprint resistant

Mounting

Wall surface or standard US, UK, or EU switchbox





Environmental

Operating Temperature

-31° - 149°F (-35° - 65°C)

Humidity

0 - 100% RHNC

Ingress Protection Rating

IP65

Electrical

Voltage

10Vdc to 16Vdc

Average Current draw at 12 VDC

35 mA

Peak Current draw at 12 VDC

67 mA

Data Voltage

Rest >4Vdc / Active <1Vdc

Reader Interface

Supervised F/2F*, OSDP, Weigand, Clock & Data

Indication

1 RGB LED

Sounder

Integral speaker

Read Range

Up to 4 in. (10cm) for RFID cards, up to 30 ft. (9m) for Bluetooth

Certifications

FCC Part 15 | UL294 | CE Marked | RoHS | WEEE
